Dalian Xin’anyue Electric Power Equipment Co., Ltd. is one of the leading manufacturers and suppliers of jdzw-35 35kv mv instrument voltage transformer in China. We are committed to providing high quality customized products with competitive price. Welcome to wholesale CE approved jdzw-35 35kv mv instrument voltage transformer from our factory.

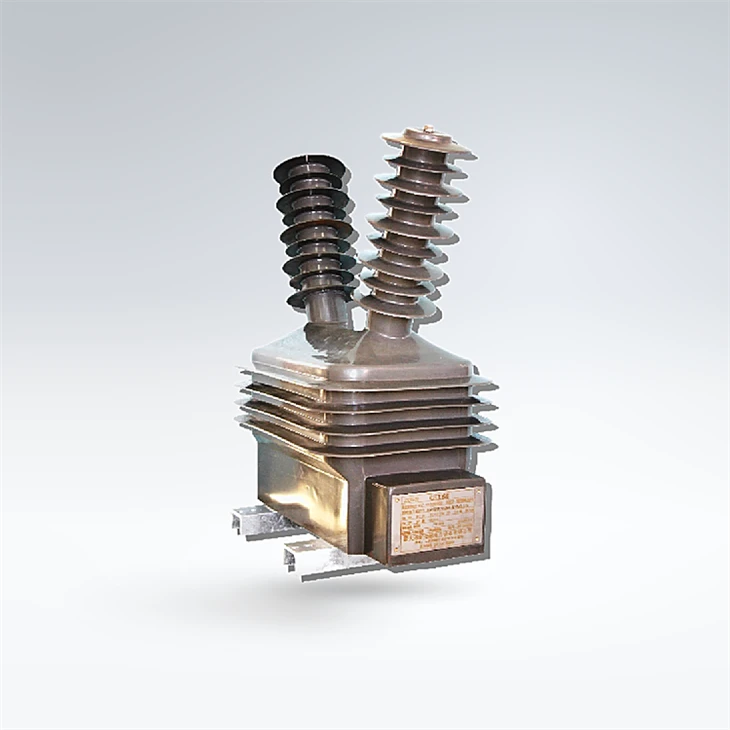

Manufactured by Dalian Xinanyue Electric Power Equipment Co., Ltd., the JDZW-35 is a professional outdoor instrument VT tailored for medium-voltage overhead power distribution systems. This outdoor instrument VT is perfectly matched with pole-mounted circuit breakers and load switches, serving as a core supporting device for outdoor pole power distribution equipment. It adopts a fully enclosed composite insulation structure composed of epoxy resin and silicone rubber, featuring excellent anti-aging performance and outstanding hydrophobicity. The premium composite materials enable the device to withstand complex outdoor climatic conditions and achieve long-term stable field operation.
Applicable to AC power systems with a rated voltage of 35kV and below and a rated frequency ranging from 50Hz to 60Hz, this high-performance outdoor instrument VT integrates two key practical functions for on-site power operation. It can conduct real-time and accurate voltage monitoring of the power grid to provide reliable data support for system operation analysis and fault judgment. Meanwhile, it can output stable voltage to serve as an auxiliary operating power supply for various outdoor switch mechanisms, meeting the power demand of field equipment commissioning and daily operation.
The optimized composite insulation structure effectively resists outdoor ultraviolet radiation, rain erosion, dust pollution and temperature changes, avoiding insulation aging and surface flashover risks. With a reasonable and compact overall structural design, the product is lightweight and easy to install on pole tops, greatly simplifying on-site construction and wiring work. Complying with GB and IEC industry standards, this outdoor voltage transformer requires minimal routine maintenance, maintains consistent working performance in harsh outdoor environments, and is an ideal multi-functional auxiliary device for 35kV outdoor power distribution networks.
|
Model |
Rated Voltage |
Rated Insulation |
Accuracy Class and |
Ultimate |
Primary |
Creep |
Wiring |
Remarks |
|
JDZW-35 |
35000/100 |
40.5/95/200 |
0.2/60 |
1200 |
0.2 |
1300 |
1.2 |
|
|
35000/100/100 |
0.2/0.2-30/30 |
600 |
||||||
|
JDZXW-35G |
35000/√3/100/√3/100/3 |
0.2/3P-40/100 |
800 |
11.12 |
||||
|
|
0.2/0.2/3P-20/20/100 |
400 |
