Dalian Xin’anyue Electric Power Equipment Co., Ltd. is one of the leading manufacturers and suppliers of jdz9-35c 35kv mv instrument voltage transformer in China. We are committed to providing high quality customized products with competitive price. Welcome to wholesale CE approved jdz9-35c 35kv mv instrument voltage transformer from our factory.

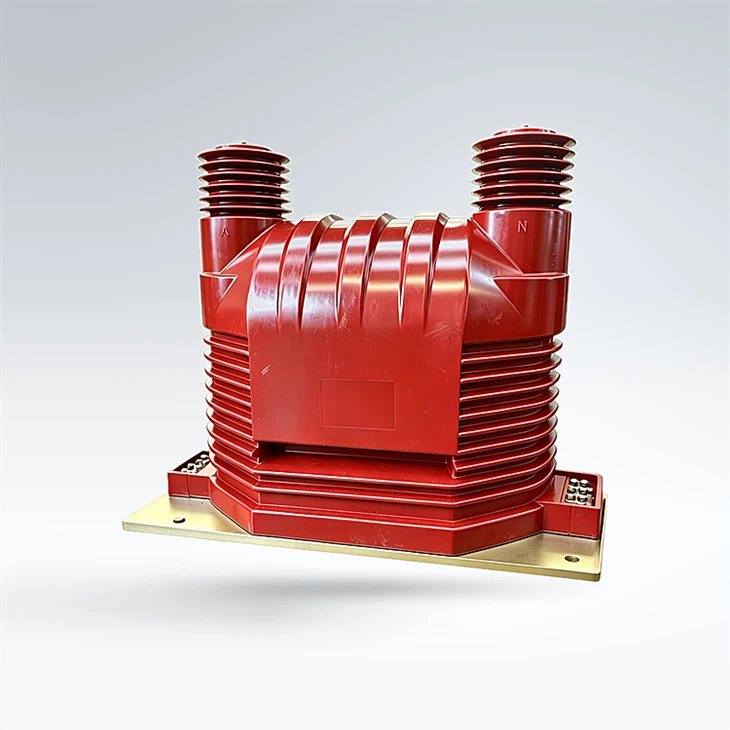

Manufactured by Dalian Xinanyue Electric Power Equipment Co., Ltd., the JDZ9-35C is a high-performance indoor medium voltage VT designed for industrial power distribution scenarios. This medium voltage VT is widely applicable to indoor power equipment including switch cabinets, switching substations and box-type transformers, covering various conventional medium-voltage distribution occasions. It adopts a fully enclosed epoxy resin casting insulation structure, featuring compact overall structure and scientific internal layout. The integral casting process endows the product with superior mechanical stability and excellent moisture-proof capability to adapt to long-term indoor continuous operation.
Suitable for AC power systems with a rated voltage of 35kV and below and a rated frequency of 50Hz to 60Hz, this reliable medium voltage VT undertakes precise electric energy metering and real-time voltage monitoring tasks. The integrated epoxy resin insulation effectively isolates internal coil components from external moisture and dust, preventing insulation aging and ensuring stable and accurate voltage transformation data under daily operating conditions. Its compact size saves indoor installation space, bringing great convenience for on-site assembly and secondary wiring construction.
Complying with GB and IEC international standards for instrument transformers, the JDZ9-35C maintains stable measuring accuracy throughout the entire service cycle. The product features strong structural rigidity and low maintenance cost, requiring only regular simple surface cleaning. As a standard cast-resin indoor medium-voltage measuring device, it provides accurate and consistent voltage data for power energy settlement and grid operational monitoring, serving as a fundamental and trustworthy component for indoor medium voltage power distribution networks.
|
Model |
Rated Voltage |
Rated Insulation |
Accuracy Class and |
Ultimate |
Primary |
Creep |
Wiring |
|
JDZ9-35C |
35000/100 |
40.5/95/200 |
0.2-80 |
1200 |
1130 |
1.2 |
|
|
35000/100/100 |
0.2/0.2-40/40 |
600 |
3.4 |
||||
|
JDZX9-35CG |
35000/√3/100/√3/100/3 |
0.2/3P-80/100 |
800 |
11 |
|||
|
35000/√3/100/√3 |
0.2/0.2/3P-40/40/100 |
400 |
12 |
||||
|
35000/√3/100/√3/100 |
0.2/0.5/0.5/3P-50/50/50/100 |
300 |
14 |
