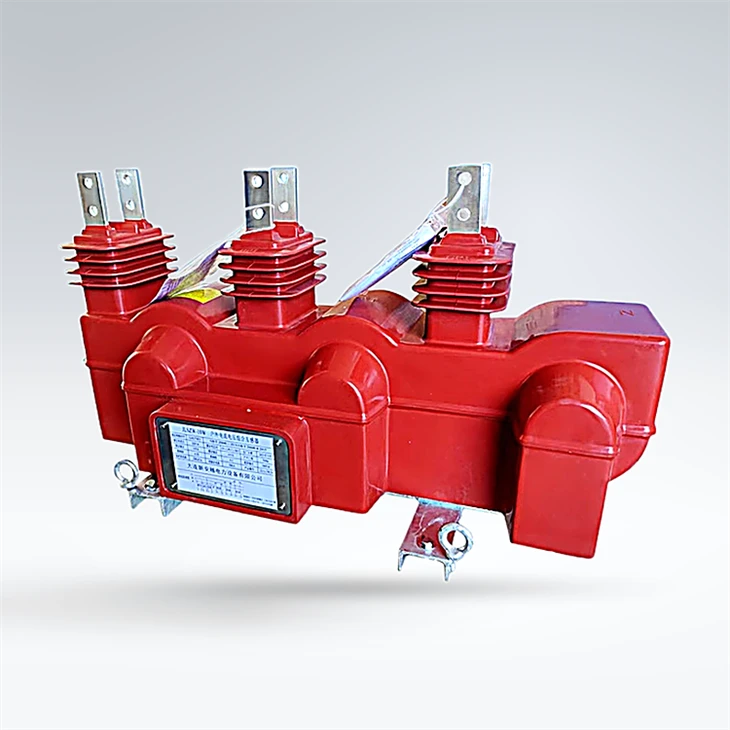

Dalian Xin’anyue Electric Power Equipment Co., Ltd. is one of the leading manufacturers and suppliers of jlszw-10w combined instrument transformer in China. We are committed to providing high quality customized products with competitive price. Welcome to wholesale CE approved jlszw-10w combined instrument transformer from our factory.
Three-Phase Three-Element Y/Y Combined Transformers an improved new-generation product based on the traditional three-phase two-element V/V connection. With the continuous development of modern society, power grid load conditions are also constantly evolving and changing. For example, single-phase loads such as electrified railway traction, electric arc furnaces for smelting, and rectifier systems, as well as grid harmonics and three-phase load imbalances, can generate negative-sequence or harmonic components in V/V-connected transformers. Without a path for these components, measurement inaccuracies occur (actual tests show errors of 3%-15% with V/V connection). Therefore, our factory has developed a combined transformer with a YN connection to ensure accurate metering under complex operating conditions and to support current power management reforms. This combined transformer offers flexible metering capabilities; for instance, using single-phase energy meters allows monitoring of each phase's load to promptly identify issues.
This product features
High-Accuracy Metering
The current transformer uses amorphous alloy as the core material, achieving a metering accuracy of Class 0.2S or higher, with minimal error. Even under very light load conditions, it maintains sufficient metering precision. Additionally, the metering winding employs a multi-ratio structure to accommodate increasing load demands.
Advanced Insulation System
The external insulation is made of imported liquid silicone rubber, offering resistance to arcing, UV rays, high pollution levels, and a long service life. Silicone rubber's hydrophobicity enables long-term, maintenance-free operation. The internal insulation uses a specially formulated epoxy resin, effectively improving the product's low-temperature resistance. The standard operating ambient temperature range is -40°C to +45°C.
Silver-Plated Primary Terminals
The primary terminals are silver-plated to prevent oxidation and reduce contact resistance.
|
Model |
Rated Voltage |
Rated Insulation |
Accuracy Class and |
Limiting |
Creepage |
|
JLSZW-10W |
6000/√3/100/√3 |
7.2/32/60 |
0.2-15 |
300 |
470 |
|
10000/√3/100/√3 |
12/42/75 |
0.2-15 |
300 |
|
Rated Primary Current (A) |
1-s Short-time Thermal |
Dynamic Current |
Rated Output (VA) |
|
|
Single Ratio |
Multiple Ratio |
|||
|
5 |
5-10-15 |
1.0 |
2.5 |
0.2S---10VA |
|
10 |
10-15-20 |
1.5 |
3.75 |
|
|
15 |
15-20-30 |
2 |
2.5 |
|
|
20 |
20-30-40 |
3 |
7.5 |
|
|
30 |
30-40-50 |
3.15 |
8 |
|
|
40 |
40-50-75 |
5 |
12.5 |
|
|
50 |
50-75-100 |
8 |
20 |
|
|
75 |
75-100-150 |
12 |
30 |
|
|
100 |
100-150-200 |
16 |
40 |
|
|
150 |
150-200-300 |
20 |
50 |
|
|
200 |
200-300-400 |
25 |
63 |
|
|
300 |
300-400-500 |
31.5 |
80 |
|
|
400 |
400-500-600 |
63 |
80 |
|
|
500-1000 |
500-600-800 |
80 |
100 |
|
|
600-800-1000 |
80 |
100 |
||
