Dalian Xin’anyue Electric Power Equipment Co., Ltd. is one of the leading manufacturers and suppliers of bwr-04/06 winding temperature controller for transformer in China. We are committed to providing high quality customized products with competitive price. Welcome to wholesale CE approved bwr-04/06 winding temperature controller for transformer from our factory.

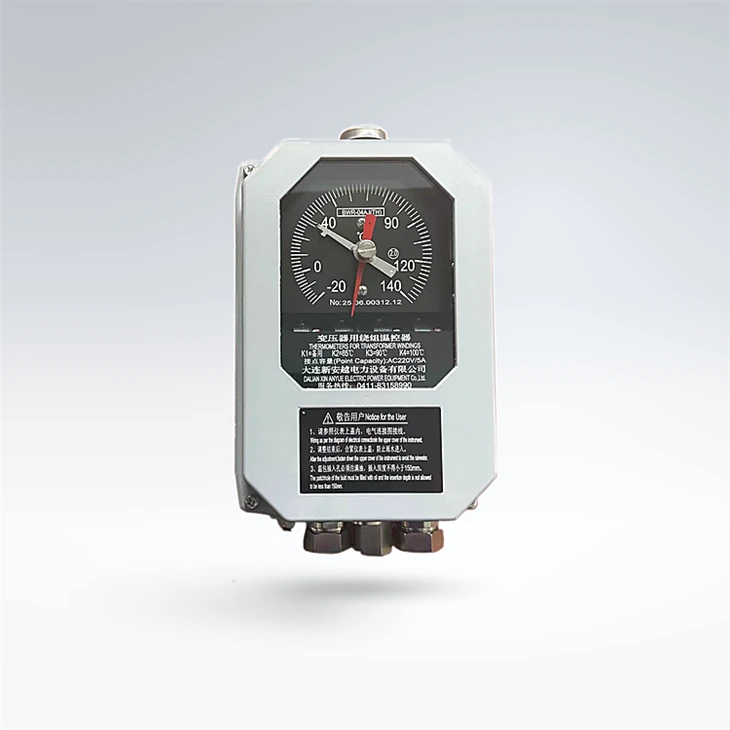

Manufactured by Dalian Xinanyue Electric Power Equipment Co., Ltd., the BWR-04J(TH) serves as a practical winding hot spot temperature controller. Developed on the additional temperature-rise principle, this specialized transformer instrument features compact layout, complete functions and simple field installation and operation. It delivers standard 4-20mA current output signal, which can be fed into computer systems and secondary meters to support unmanned substation operation and management.
This winding hot spot temperature controller is assembled with elastic elements, bellows, capillary tubes, sensing parts, heating units, transmitters, current converters and digital display modules. Its sensing component mounts inside the top-layer oil hole of transformer tank. Under no-load status, the reading reflects actual transformer oil temperature. Once the transformer carries load, current proportional to load will pass through the built-in heating element inside bellows after converter adjustment. Generated heat will drive extra displacement of elastic elements.
For this winding hot spot temperature controller, total displacement comes from top-layer oil temperature plus heat generated by load-driven heating parts. The displayed value equals top-oil temperature plus winding-to-oil temperature rise, so it realizes indirect measurement for transformer winding hottest-spot temperature for on-site power equipment monitoring.
